Problem Overview
== Using SIP RTP CoS mark 5
> 0x7f81dc00eab0 -- Strict RTP learning after remote address set to: 172.16.10.222:19274
-- Executing [5101@trunkinbound:1] NoOp("SIP/JIO-00000003", "Inbound call from +918318841546") in new stack
-- Executing [5101@trunkinbound:2] ExecIf("SIP/JIO-00000003", "1?Set(CALLERID(num)=8318841546)") in new stack
-- Executing [5101@trunkinbound:3] ExecIf("SIP/JIO-00000003", "0?Set(CALLERID(num)=18841546)") in new stack
-- Executing [5101@trunkinbound:4] NoOp("SIP/JIO-00000003", "CallerID after strip: 8318841546") in new stack
-- Executing [5101@trunkinbound:5] AGI("SIP/JIO-00000003", "agi-DID_route.agi") in new stack
-- Launched AGI Script /usr/share/asterisk/agi-bin/agi-DID_route.agi
-- AGI Script Executing Application: (Monitor) Options: (wav,/var/spool/asterisk/monitor/MIX/20260110121607_5101_8318841546)
-- <SIP/JIO-00000003>AGI Script agi-DID_route.agi completed, returning 0
-- Executing [99909*2***DID@default:1] Answer("SIP/JIO-00000003", "") in new stack
> 0x7f81dc00eab0 -- Strict RTP qualifying stream type: audio
> 0x7f81dc00eab0 -- Strict RTP switching source address to 172.16.60.1:19274
-- Executing [99909*2***DID@default:2] AGI("SIP/JIO-00000003", "agi-VDAD_ALL_inbound.agi") in new stackIn many VICIdial installations in India, inbound calls arrive with the caller ID in E.164 format, such as:
+91XXXXXXXXXX
or
91XXXXXXXXXX
However, most VICIdial lead databases store phone numbers in 10-digit format:
XXXXXXXXXX
Because of this mismatch, VICIdial fails to:
- Match inbound calls with existing leads
- Display correct customer information to agents
- Properly log inbound calls against leads
This article explains how to fix this issue permanently by stripping +91 or 91 from incoming Caller IDs.
Environment Used
- VICIdial
- Asterisk 16
- SIP trunk (example: Jio SIP)
- Inbound calls routed through
[trunkinbound]context - Caller ID received as
+91XXXXXXXXXX
Root Cause of the Issue
From the Asterisk CLI logs:
Inbound call from +918318841546
CallerID after strip: +918318841546
The issue occurs because:
- The dialplan logic checks for
91 - But the actual number starts with
+91 - Therefore, the condition fails and Caller ID remains unchanged
VICIdial performs lead lookup using CALLERID(num), not the DID or EXTEN.
Correct Solution: Strip +91 and 91 in Asterisk Dialplan
The Caller ID must be normalized before it reaches VICIdial’s agi-DID_route.agi.
File to Edit
/etc/asterisk/extensions-vicidial.conf
(or extensions.conf, depending on your setup)

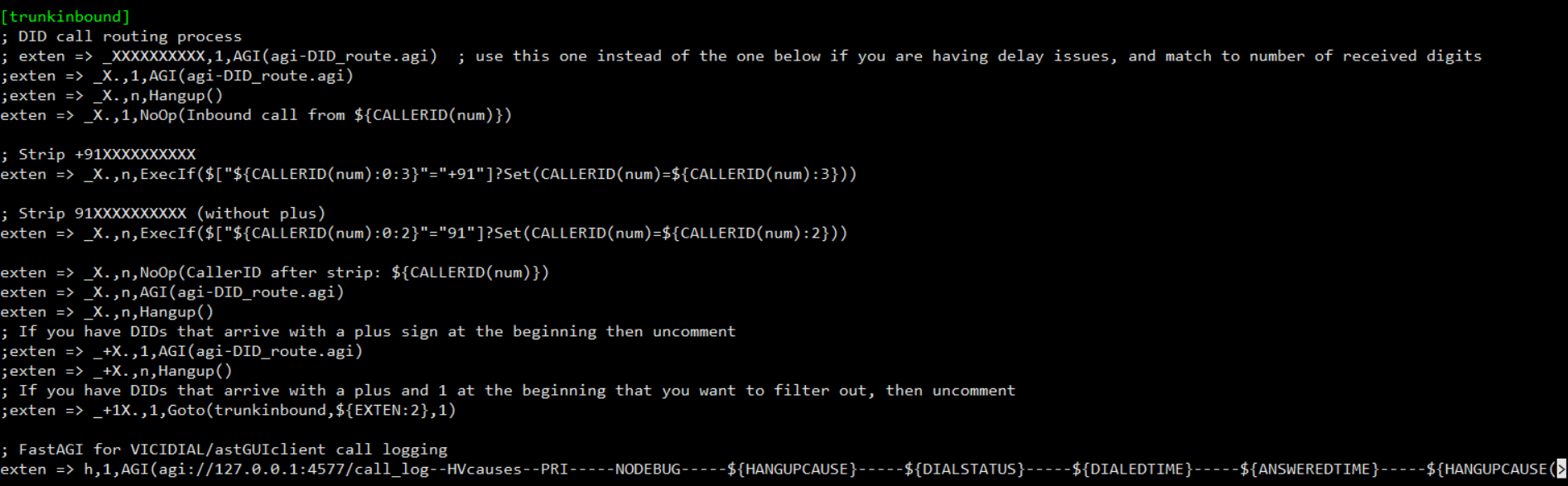

Working Dialplan Configuration
Use the following configuration in your inbound context (example: [trunkinbound]):
[trunkinbound]
exten => _X.,1,NoOp(Inbound call from ${CALLERID(num)})
; Strip +91XXXXXXXXXX
exten => _X.,n,ExecIf($["${CALLERID(num):0:3}"="+91"]?Set(CALLERID(num)=${CALLERID(num):3}))
; Strip 91XXXXXXXXXX (without plus)
exten => _X.,n,ExecIf($["${CALLERID(num):0:2}"="91"]?Set(CALLERID(num)=${CALLERID(num):2}))
exten => _X.,n,NoOp(CallerID after strip: ${CALLERID(num)})
exten => _X.,n,AGI(agi-DID_route.agi)
exten => _X.,n,Hangup()
How This Works
| Incoming Caller ID | Result |
|---|---|
+918318841546 | 8318841546 |
918318841546 | 8318841546 |
8318841546 | No change |
After normalization:
- VICIdial matches leads correctly
- Agent screens show proper customer details
- Call recordings use clean numbers
Apply Changes
Reload the dialplan:
asterisk -rx "dialplan reload"
Verify from Asterisk CLI
Run:
asterisk -rvvvvv
Expected output:
Inbound call from +918318841546
CallerID after strip: 8318841546
This method:
- Requires no dialplan edits
- Works across upgrades
- Is the preferred VICIdial approach
Note:-
| In-Group Call Handle Method: CIDLOOKUP | uses all system to search leads based on CALLERID |
Conclusion
If your inbound calls are not matching leads due to +91 or 91 prefixes:
- Normalize CALLERID(num) before VICIdial processes the call
- Handle both
+91and91formats - Prefer VICIdial’s CID Number Rules for long-term stability
This fix is essential for Indian VICIdial installations using SIP trunks.
